ecosyn®-SEF: Operationally safe contact screw

ecosyn SEF

For operationally safe contact screw connections

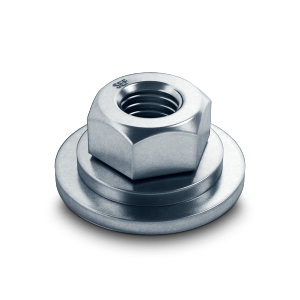

ecosyn®-SEF is a multifunctional fastener for secure mechanical connections and provides a reliable screw connection for electrically live contacts for high voltage and low voltage applications, which was officially launched by Bossard Group in Q1 2021. SEF stands for “Safe Electromechanical Fastener” and it combines a self-locking nut with an integrated spring washer and large contact surface.



Everything in one element

Reliable electrical devices require reliable contact fittings. The requirements on live parts are always increasing due to new standards, such as the EU directives RoHS or REACH and relevant design specifications.



ecosyn®-SEF is a multifunctional fastener for secure mechanical connections and provides a reliable screw connection for electrically live contacts for high voltage and low voltage applications. Together with a renowned American electromobility pioneer, Bossard engineers developed a SEMS nut, which combines the following elements:ecosyn SEF drawing



Spiralock® thread lock (1) in the nut (2): The special thread Spiralock® prevents the contact fitting from coming loose when exposed to any existing vibrations or external loads on the clamping point.

Spring washer (3): The spring assembly can counteract a loss of preload force in the case of short clamping conditions with varying material pairings, separation points, and different operating temperatures.

The washer (4) prevents surface imprints when re-assembling, which favors a flawless electrical current transmission. The larger contact surface of the ecosyn®-SEF reduces the surface pressure and also ensures an effective transmission of force in slotted holes.



Applications

 ecosyn®-SEF nuts are particularly suitable for electrical contacts, slotted screw connections and connections subject to vibration:

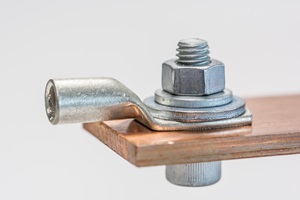

    ecosyn SEF nut application
  • Electric mobility
  • Rail vehicles (e.g. power electronics)
  • Electrical devices with safety-relevant connections
  • High voltage batteries
  • Transformers
  • Slotted connections, e.g. for adjustments
  • Compounding of non-ferrous metals with large coefficients of expansion with temperature fluctuations
  • Screw connections of components made of aluminium, copper or soft materials with high settlement
  •



    How can you benefit from ecosyn®-SEF?

    • Patented and innovative technology
    • Rationalization in procurement and logistics
    • Shorter preparation and assembly times
    • Proven Spiralock® loosening protection for property class of the screws 8.8
    • Increased process reliability for operationally safe contact screw connections in high-voltage and low-voltage applications
    • Large surface cover for large through holes
    • Reusability (under conditional conditions)
